SNODO SFERICO FORO 0,5625" (14,29mm)
Riferimento: ASK-G15575V
98,64 €
Iva inclusa
Contattaci per maggiori informazioni
Snodo sferico

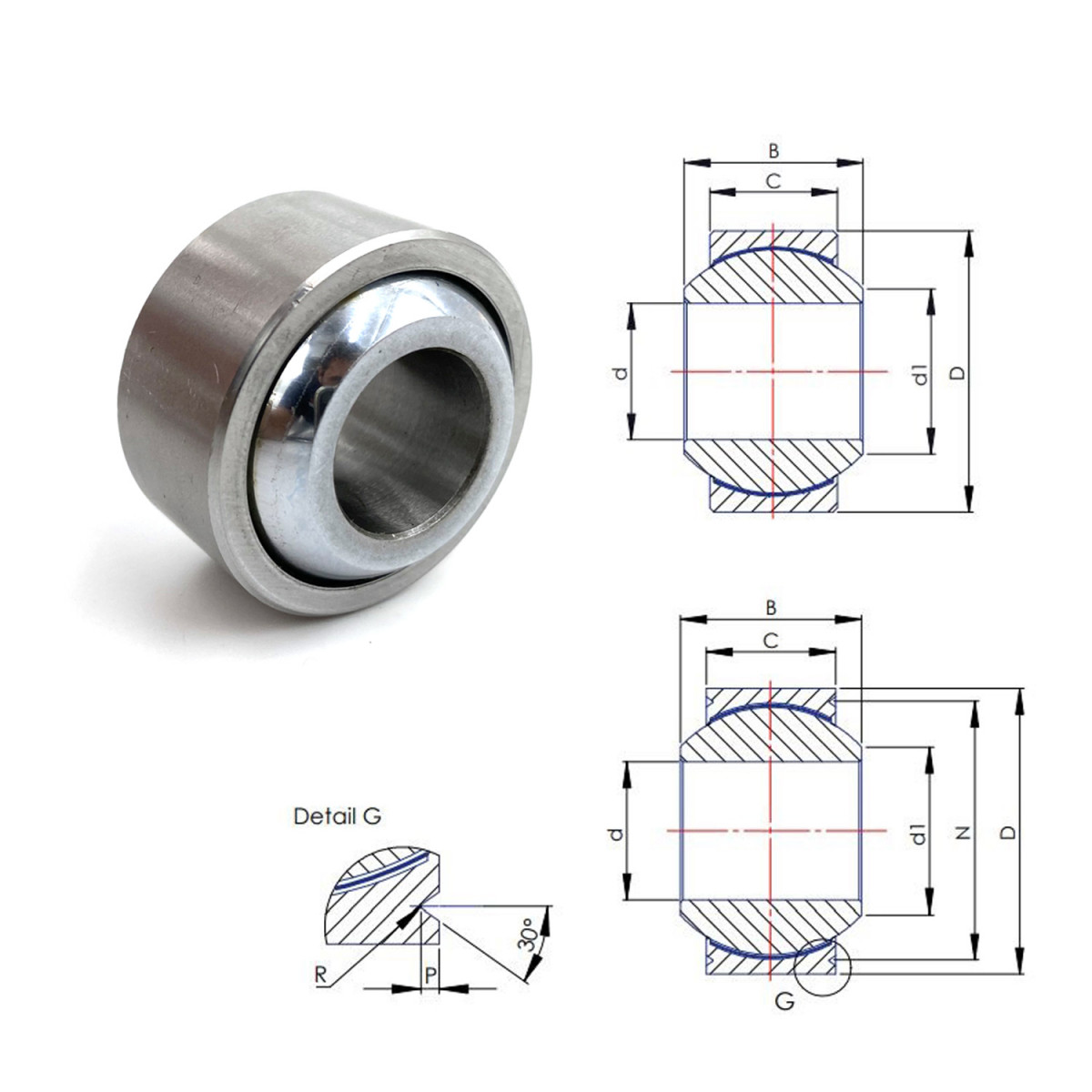

Dimensioni:
(B) 17,45mm (inch 0.687)
(C) 13,61mm (inch 0.536)
(D) 28,58mm (inch 1.1250)
(d) 14,29mm (inch 0.5625)
(d1) min 18,44mm (inch 0.726)
(N) 26,04mm (inch 1.025)
(P) 1,40mm (inch 0.055)
(R) 0,254/ 0,4318mm (inch 0.010/ 0.012)
angolo inclinazione 10°
